Hulk Series Hydraulic Hinge
[Hydraulic Hinges are sold in pairs - prices are shown for the pair of hinges]
GGH’s Hulk Series Hydraulic Hinge provides an advanced soft-close solution for seamless glass-to-glass installations, integrating the closing function directly into the hinge without requiring any additional floor or ceiling components. This non-hold open model ensures smooth door operation without fixed open angles, making it perfect for settings where continuous door movement is desired.
Constructed from SS316, it delivers outstanding corrosion resistance and durability, performing reliably in both indoor and outdoor environments, including shower installations. The design also protects floor integrity by eliminating the need for a floor plate. Comes in a box of two.

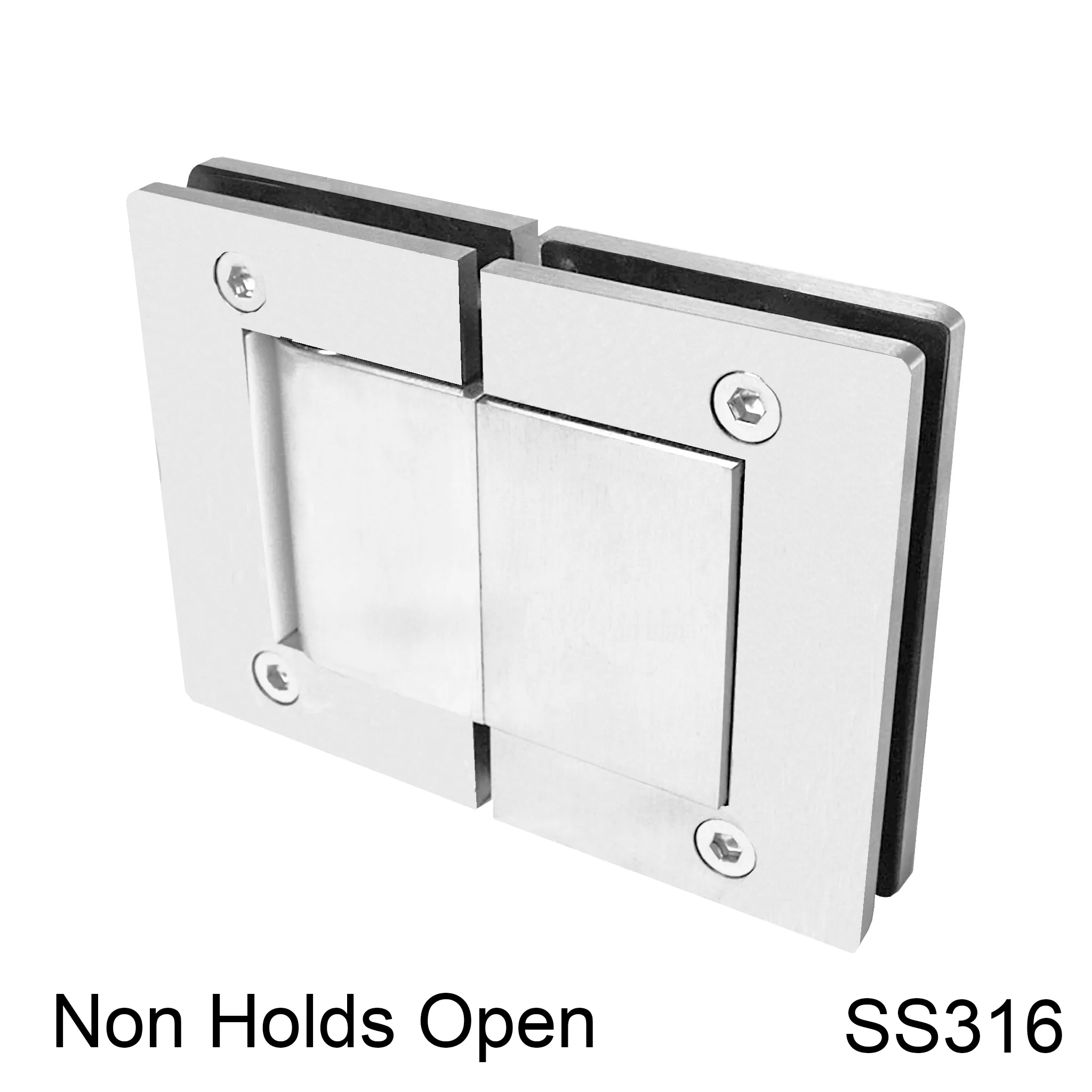

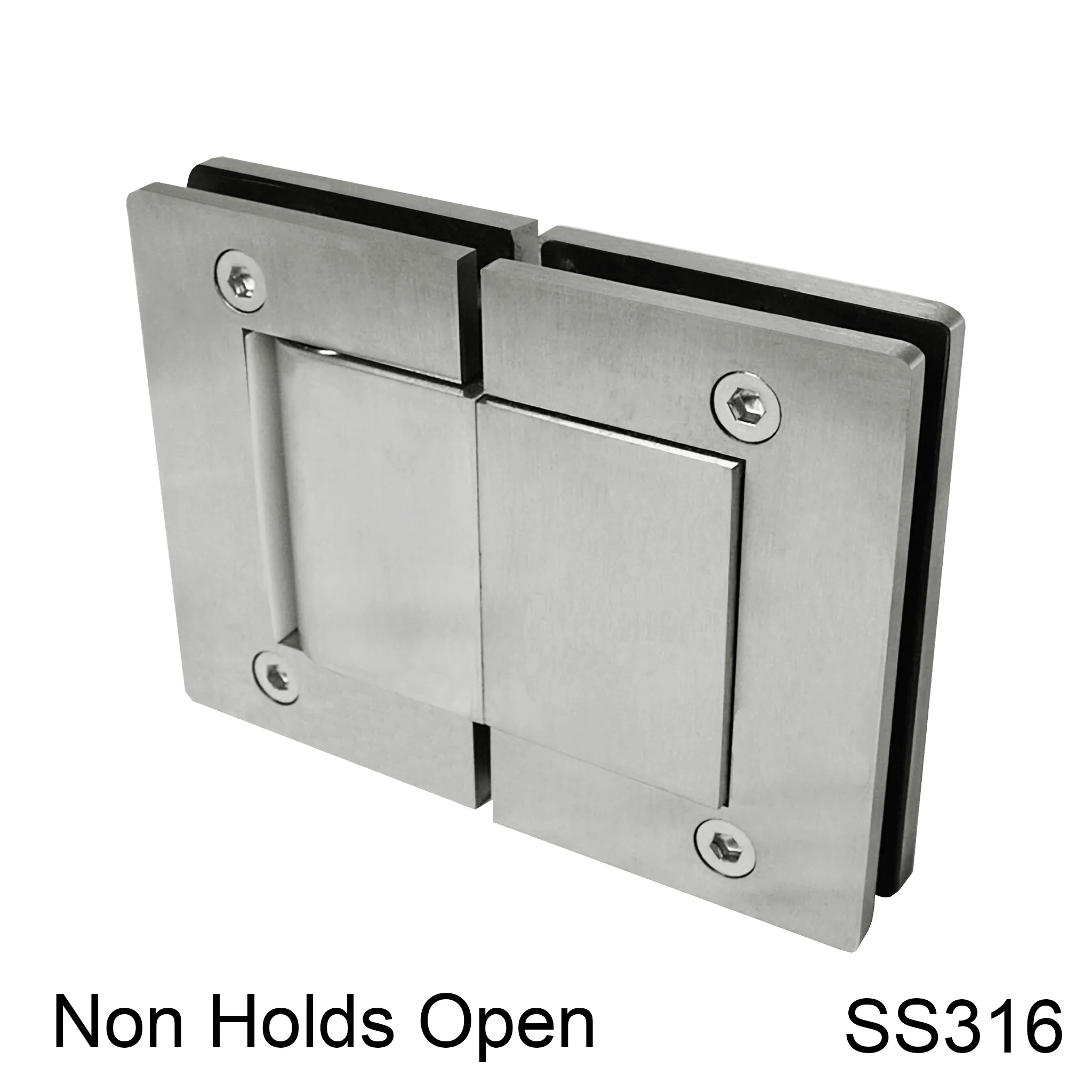

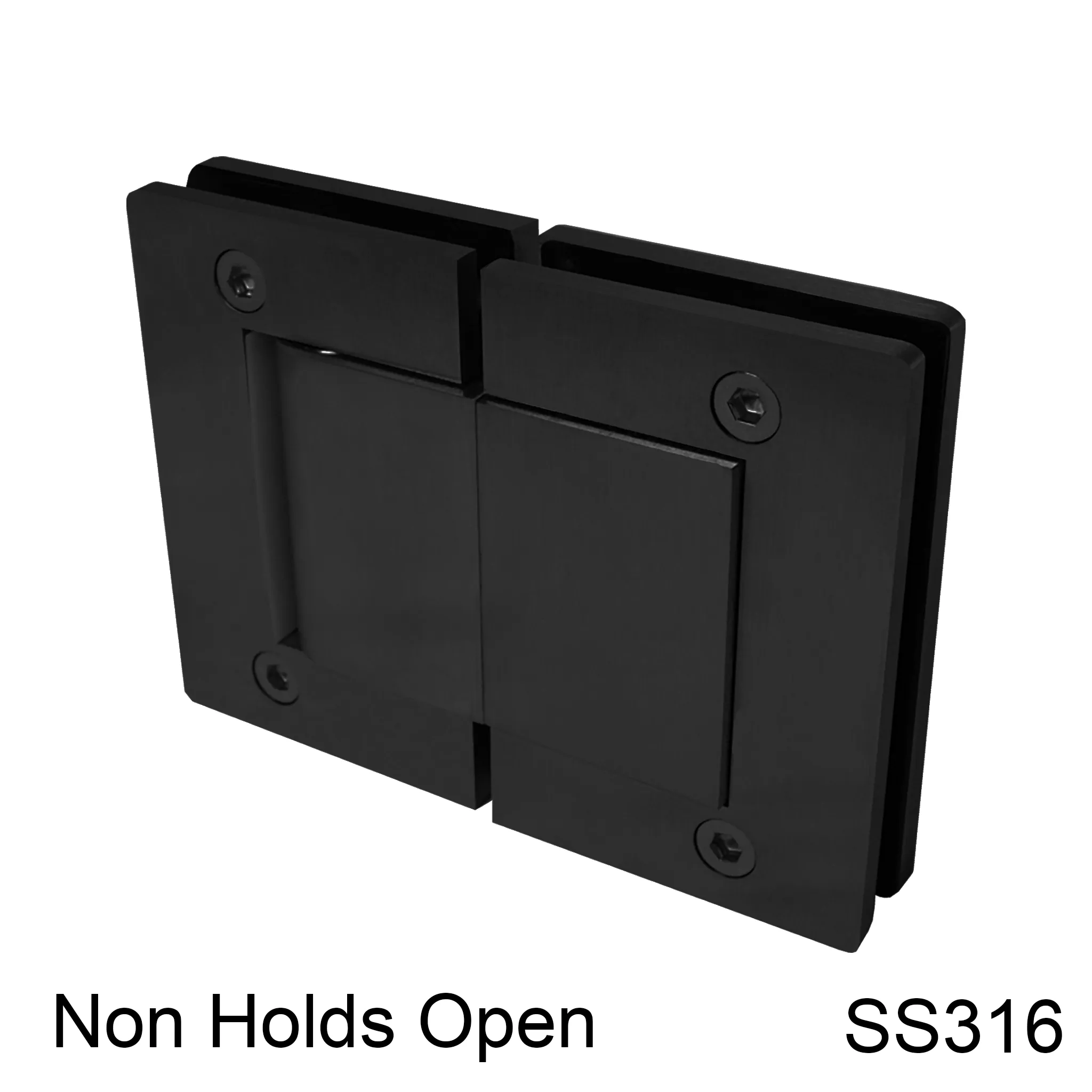

Finishes Available:
- Brushed Stainless
- Polished Stainless
- Black
Key Features:
- Maximum Weight: 60KG (132Lbs)
- Maximum Height: 86" (2200mm)
- Maximum Width: 39" (1000mm)
- Glass Thickness: 5/16" to 9/16" (8 to 14 mm)
- Material: SS316
- Hinge Swings: 95º Inwards and Outwards
- Closing function: Automatic closing from 85º to 0º
- Special Feature: Non Holds Open at 90º(optional); Closing and latching speed adjustable.
Cut-out required. View CAD/PDF product drawings for more details.
For additional information or custom finish requests, contact us at .
