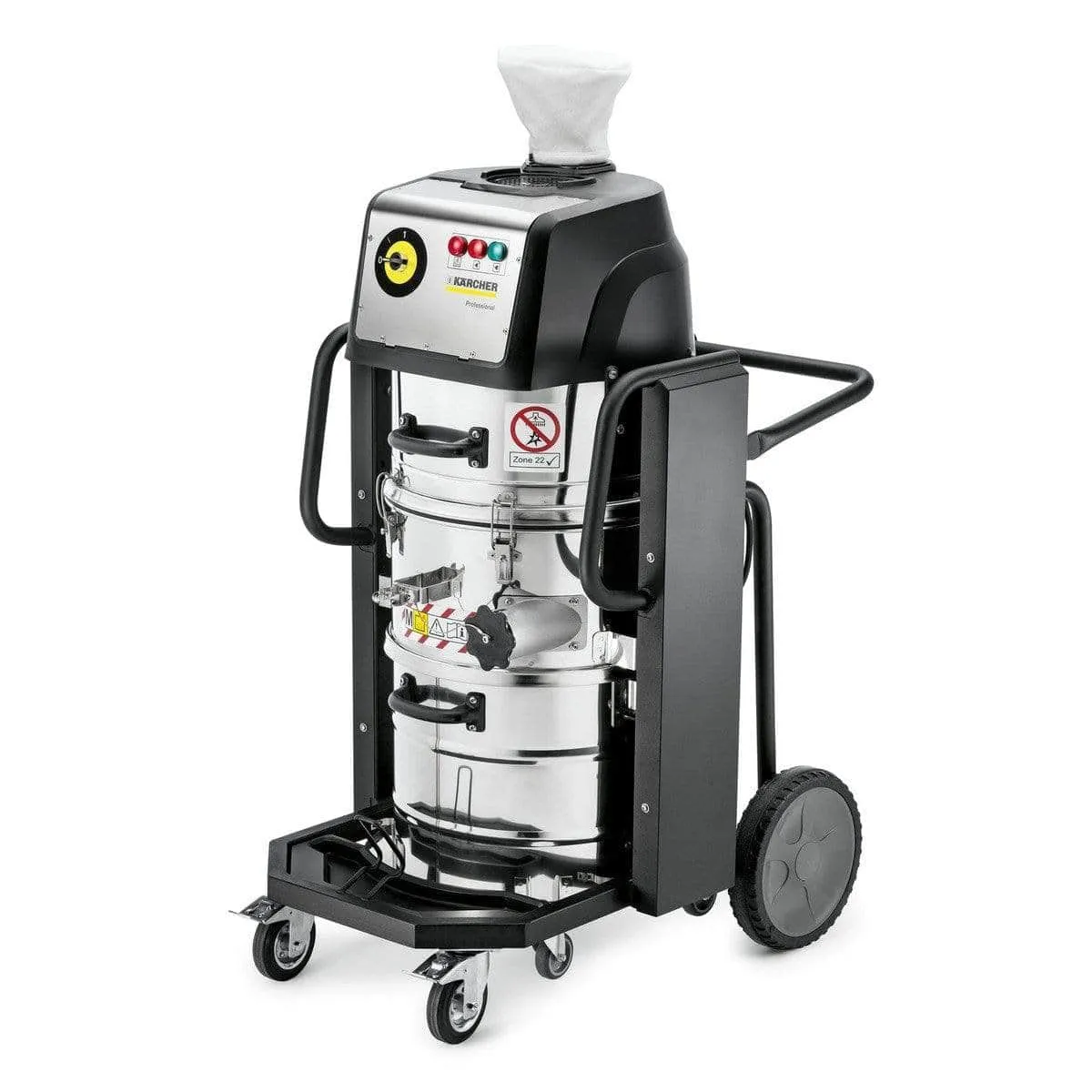

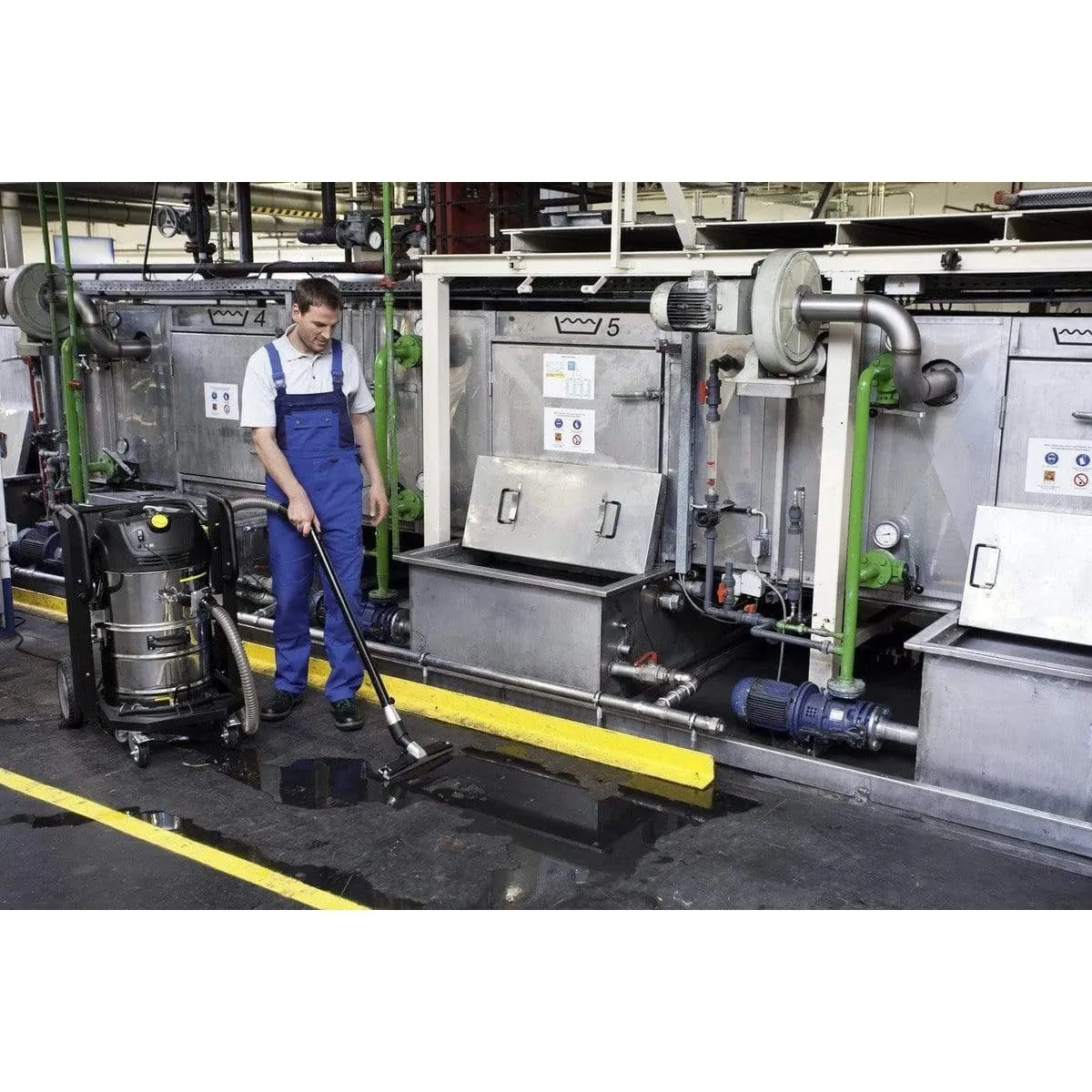

The IVC 60/30 Ap M Z22 is a compact industrial vacuum with wear-resistant side channel blower, ideal for continuous operation, and an interface for all standard machine control systems. The reliable industrial vacuum is designed for use in manufacturing areas and for cleaning production machinery in ATEX zone 22. The machine is also suitable for areas where there are dusts in dust class M, which are harmful to health, or for areas with very strict hygiene regulations.
FEATURES AND BENEFITS
With compact flat pleated filter
The compact flat pleated filter allows a large filter area with a small and clear design.Certified according to 94/9/EC (ATEX)
Explosion-proof industrial vacuum certified according to 94/9/EC (ATEX) for zone 22 and dust filter class M.Waste container with set-down mechanism
The waste container with set-down mechanism ensures ergonomic emptying, even when the vacuumed waste is heavy.Manual filter vibration for low operating costs
- The manual filter vibration increases the working time of the permanent filter, thereby reducing the maintenance effort.
SPECIFICATIONS
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Air flow (l/s/m³/h) | 49.2 / 177 |
| Vacuum (mbar/kPa) | 250 / 25 |
| Container capacity (l) | 60 |
| Motor rating (kW) | 3 |
| Filter area (m²) | 1.9 |
| Nominal size | ID 70 |
| Accessory nominal size | ID 40 |
| Sound level (dB(A)) | 77 |
| Weight without accessories (kg) | 95 |
| Dimensions (L x W x H) (mm) | 970 x 690 x 1240 |
Equipment
- Accessories included with machine, no
