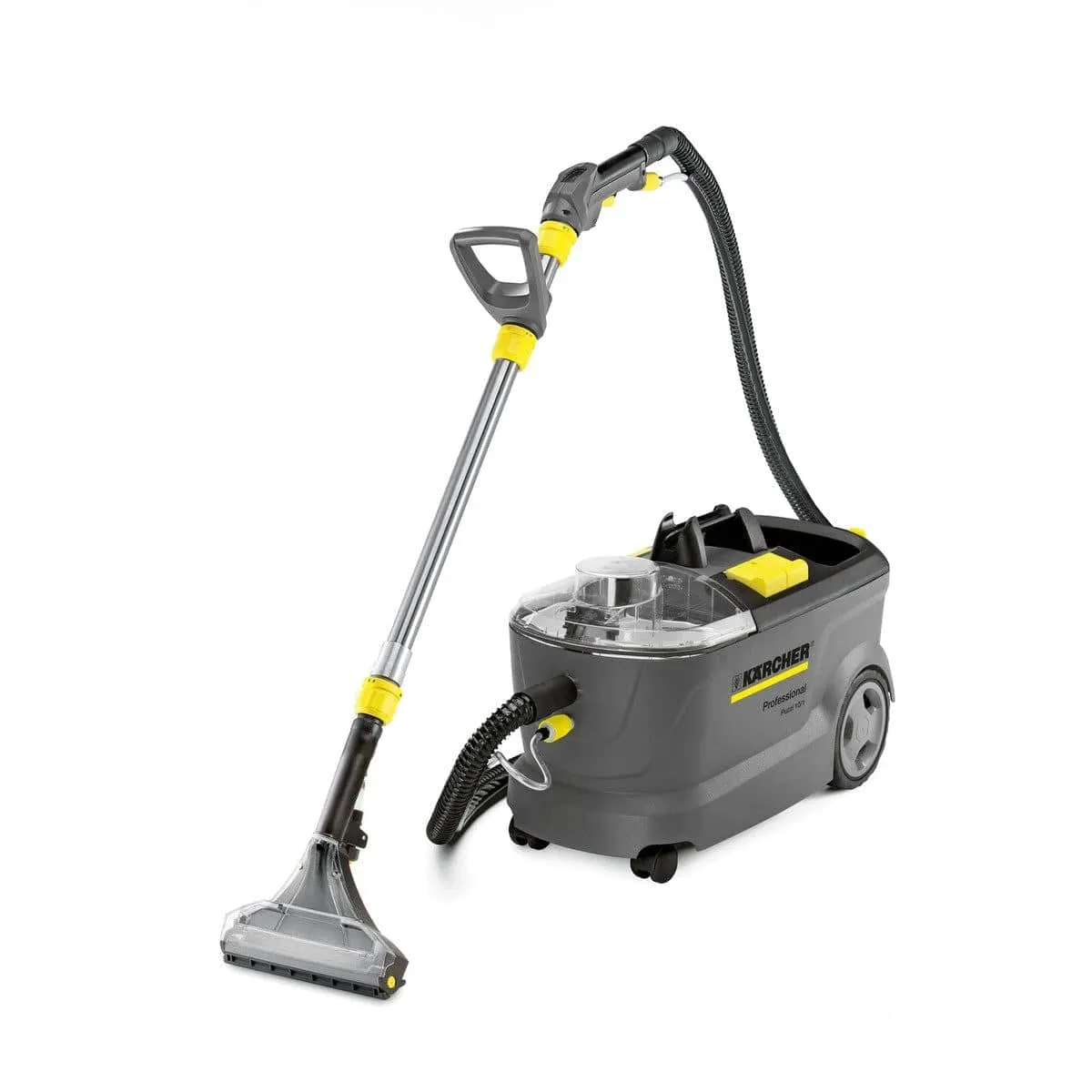

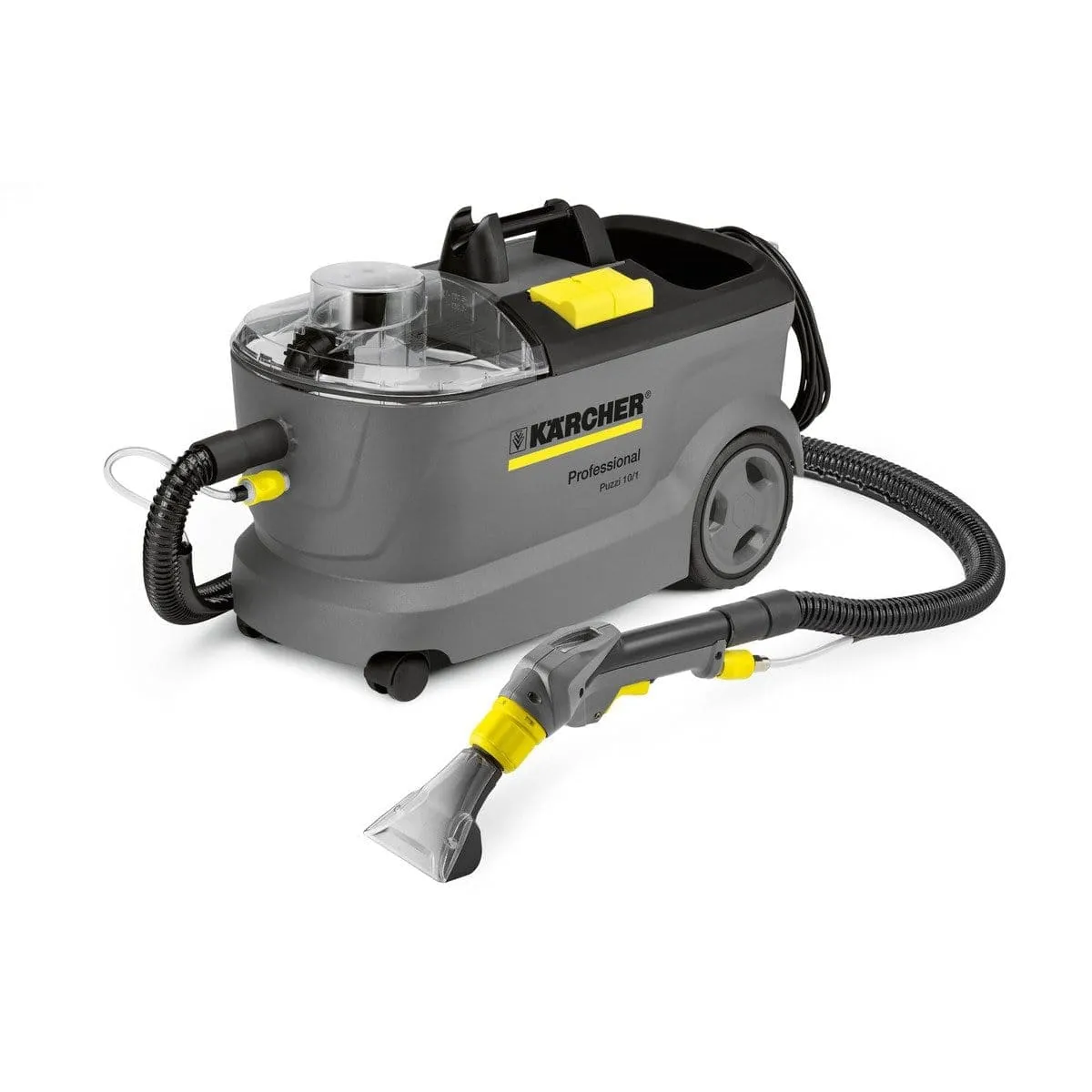

Puzzi 10/1 with upholstery nozzle and floor nozzle is particularly suited to hygienic and effective cleaning of small to medium surfaces. With 1 bar spray pressure, the spray extraction machine ensures gentle, deep cleaning of textiled surfaces and delivers impressive results, especially when cleaning carpets and upholstery.
Thanks to the narrow floor nozzle, the machine is optimally suited for use in confined spaces. The flexible suction lips allow cluttered areas to be cleaned easily. The spray extraction machine is fitted with an integrated cable hook and a holder for a handle with trigger and suction pipe.
SPECIFICATIONS
Technical data
| Max. area performance (m²/h) | 20 - 25 |
| Air flow (l/s) | 74 |
| Vacuum (mbar/kPa) | 254 / 25,4 |
| Spray rate (l/min) | 1 |
| Spray pressure (bar) | 1 |
| Fresh/dirty water tank (l) | 10 - 9 |
| Turbine capacity (W) | 1250 |
| Pump capacity (W) | 40 |
| Voltage (V) | 220 - 240 |
| Frequency (Hz) | 50 - 60 |
| Weight without accessories (kg) | 10,5 |
| Weight incl. packaging (kg) | 16,1 |
| Dimensions (L × W × H) (mm) | 690 x 325 x 440 |
