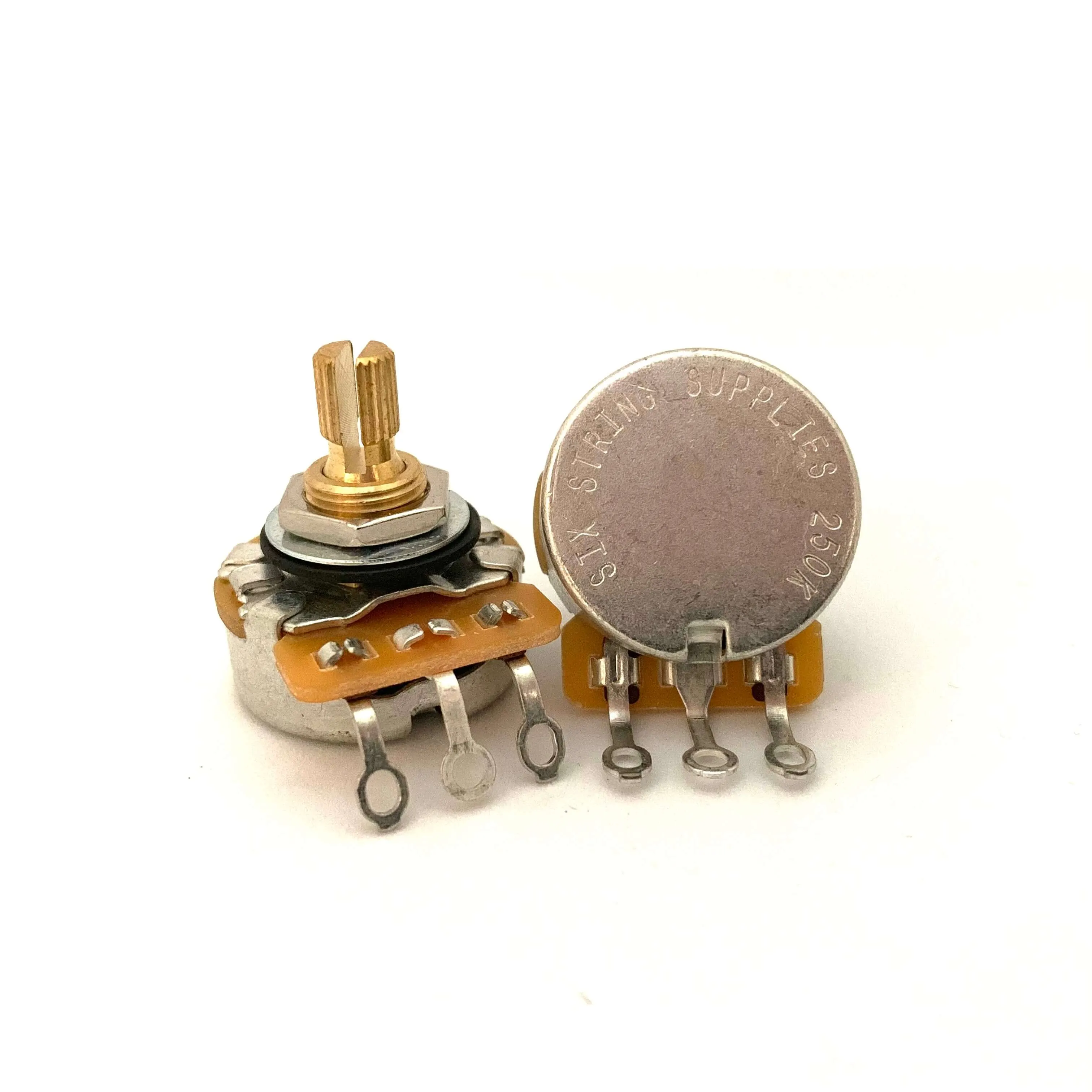

These 250k pots are used specifically as blend controls in our setup and other setups that use a blend control.
In the same way as a "no load" pot, SSS Premium® blender pots act as a bypass when rotated between 9 and 10, removing the pot from the circuit.
The main difference from the "no load" pot is that there is no click feel between 9 and 10. Pot function is the same as a standard pot.
Specs:
- Audio taper
- 250k resistance
- Bypass/out of circuit when open at 10
- 10% resistance tolerance
- Longer life brass shaft and bushing
- Tin plated casing for easy soldering
- Anti-static lubricant guarantees a reliable and glitch-free operation
- Traditional flat back cover
Dimensions:
- 5.95mm split shaft (24 spline for US spec knobs) or 6.35mm solid shaft
- Shaft Height: 6.35mm (1/4'')
- Thread bushing height: 6.35mm (1/4'')
- Required Mounting Hole: 9.52mm (3/8'')
- 3/8'' x 32 thread
Our 250k pots are pickguard/control plate mount only.
