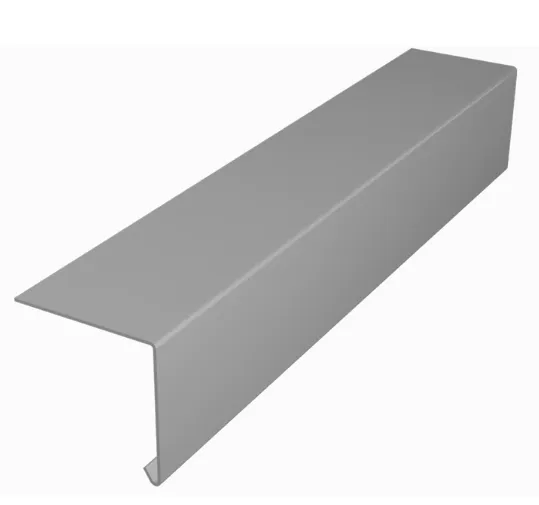

Key Features:

• Length: 3mtr
• Width: 80mm
• Drop: 90mm
• Use: Universal Drip Trim fitted to the edge of the roof to allow drainage into the gutter

Description:

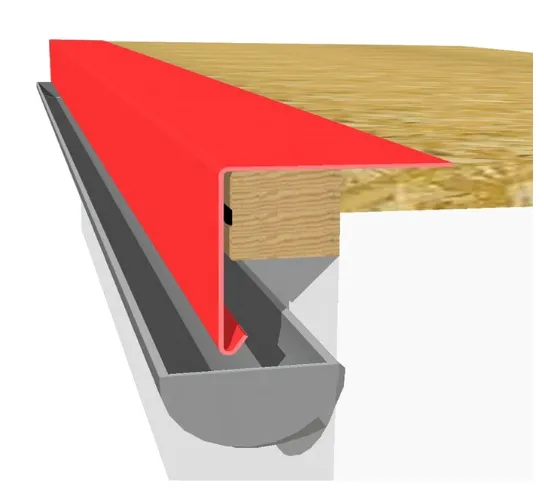

Drip edge trims are fitted to the lowest edge of the roof where the rainwater flows into the gutter. To ensure the vertical leg of the trim sits into the centre of the gutter, the trim needs to be packed out by using two support battens, the first fixed just below the level of the deck and the second 10mm below the first, to allow the trim to sit flush with the roof.

Glass Reinforced Polyester flat roof system designed and engineered for flat roof applications. This is a fully integrated all in one system where the components work together on virtually all types of flat roofs and vertical surfaces in any domestic or commercial application to provide the perfect all weather protection.
