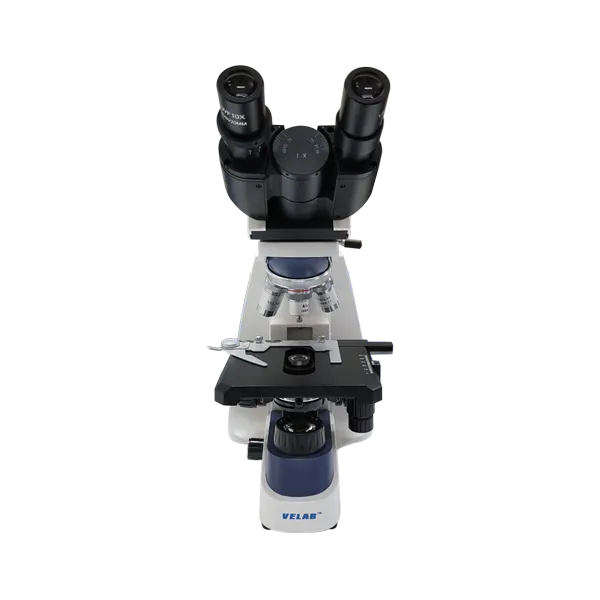

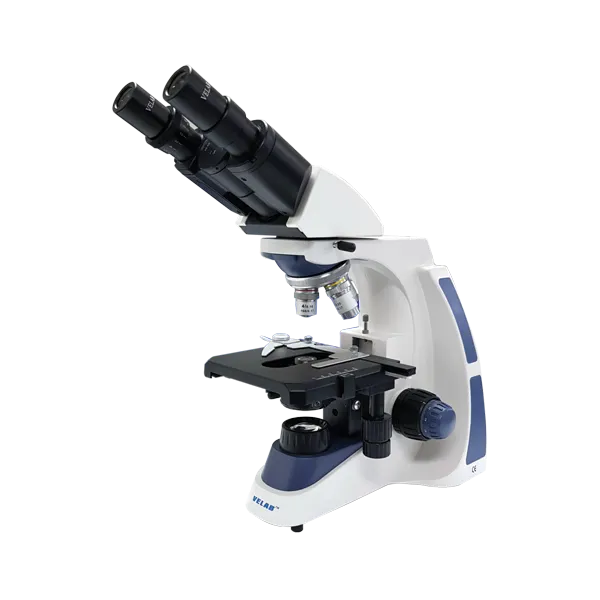

Name: VE-B1 Basic Binocular Microscope Siedentopf Type
SKU: 490226

VE-B1 Basic Binocular Microscope Siedentopf Type

$ 59.87

$ 77.83

Save: $

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

The ideal microscope for all kinds of basic and advanced techniques. The VE-B1 complies with the necessary characteristics for routine work in clinical laboratories. Ideal for observing samples in areas such as histology, biomedicine and biotechnology.

Especifications

Eyepieces	WF 10X/20 mm
Nosepieces	Quadruple

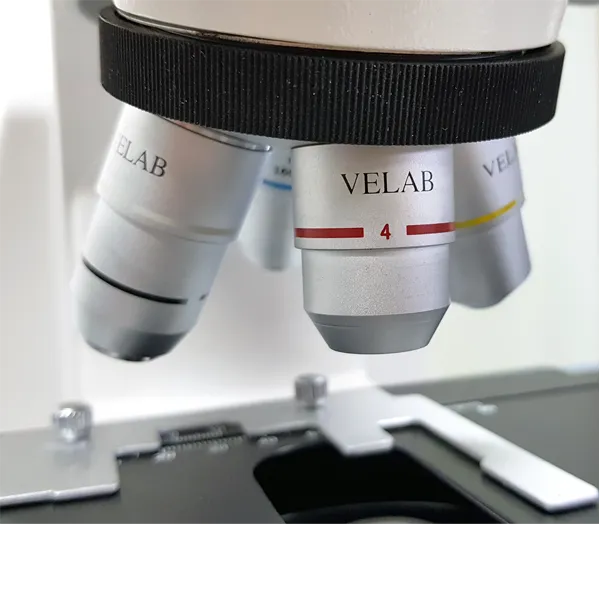

Objectives	4X, 10X, 40X, 100X (S) (oil)
Optical System	Achromatic
Stage	Double layer with coaxial movement X-Y 140 x 130 mm/ 5.5” x 5.1”.
Condenser	Abbe, N.A. 1.25 with elevator
Diaphragm	Iris type with filter holder.
Focus	Coarse and fine anti-slip control knob
Ilumination	LED
Dimensions	250 x 350 x 180 mm/ 9.8” x 13.7” x 7.0”
Power supply	Three 1.2V AA rechargeable batteries (included). 110/240, 50/60 Hz AC Adapter.
Main Features	Diopter adjustment in an eyepiece. Siedentopf type Binocular Head. Head inclined at 30 ° and rotatable 360 °. Interpupillary distance of 48 ~ 75 mm. Stative, robust, reinforced and easy to transport. Lighting with intensity adjustment. Rechargeable batteries incorporated into the stand. Stage with vernier, millimeter scale, caliper and stop with height adjustment. Objectives with slip resistant and colored rings. It includes an eyepiece pointer
Applications	Education: Upper grade levels Research Clinical
Accessories Included	Power cord Dust cover Eyepieces WF 20X/15mm Immersion Oil Color filters green, yellow and blue
Warranty	10 years
